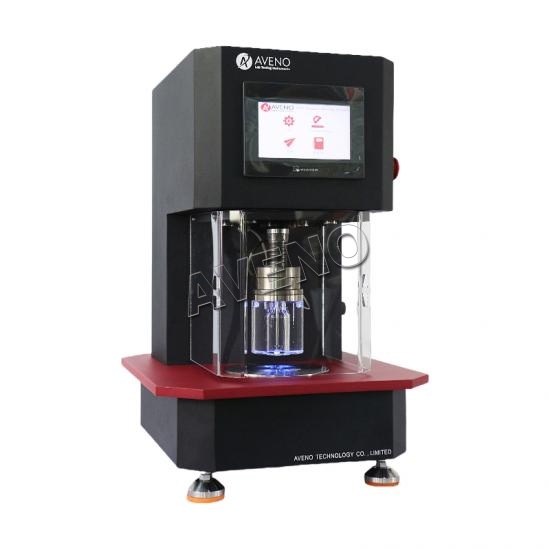

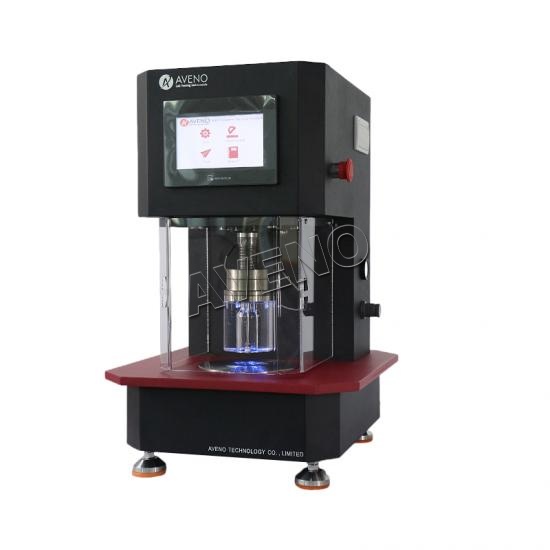

Pneumatic Bursting Strength Tester is suitable for the performance measurement of expansion force and expansion degree of various textiles, non-woven fabrics, leather and other materials when they are subjected to forces in the warp and weft directions simultaneously (elastic diaphragm method).
Brand:
AVENOItem NO.:
AG10CPayment:
T/T, L/CProduct Origin:
ChinaShipping Port:
Xiamen portLead Time：
3-10 daysApplication
Pneumatic Bursting Strength Tester is suitable for the performance measurement of expansion force and expansion degree of various textiles, non-woven fabrics, leather and other materials when they are subjected to forces in the warp and weft directions simultaneously (elastic diaphragm method).

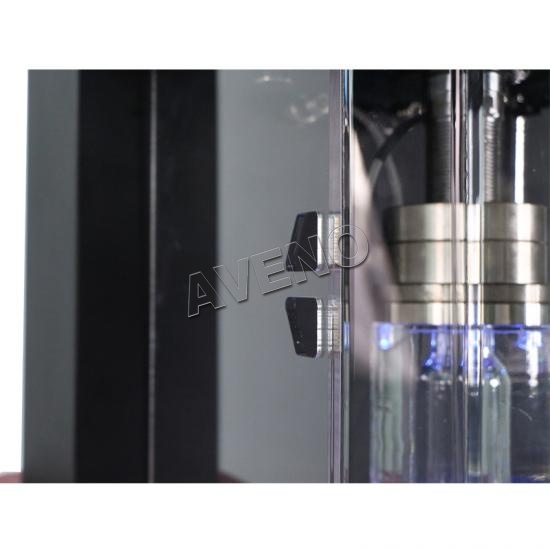

Fabric Pneumatic Bursting Strength Tester is designed by absorbing the advantages of similar instruments at home and abroad. It adopts touch screen display, pneumatic clamping, external plexiglass protective cover, AC servo drive system, high-speed AD and processor, etc., making the instrument simple to operate, high in test accuracy, stable in operation, low in noise, and easy to maintain.
Standards
ASTM D3786-06, ISO2758/13938-1, BS 3424/3137, BS 4768, AS2001.2.4, GB/T 7742, IWSTM 29, EDA NA 80.4-02/80.3-99, NEXT 22 2206, FZ/T60019, JIS L 1018.6.17, BS-2922, FZ/T 60019, FZ/T 01030, JIS L 1018.6.17.
Dimensions & Weight
|
Model |
Fabric Pneumatic Bursting Strength Tester |
|
Dimensions |
550*450*700mm |
|
Weight |
105 Kg |
Key Specification
|
Model |
Fabric Pneumatic Bursting Strength Tester |
|
Test range |
1.2Mpa |
|
Min division value |
0.1Mpa |
|
Test area |
Standard:7.3cm² (φ30.5mm), 50cm² (φ35.7mm), Option: 10cm² (φ79.8mm), 100cm² (φ112.8mm), |
|
Expansion accuracy |
0.01mm |
|
Compressed air |
600-800Kpa |
|
Test method |
Constant pressure bursting Constant time bursting |
|
Pressure units |
Kpa, kg/cm², bar, lb/in² |
|
Power supply |
AC220V, 50/60HZ |
Standard Accessories
|
Model |
Fabric Pneumatic Bursting Strength Tester |
|
7.3cm² test set (φ30.5mm) |
1set |
|
50cm2 test set (φ79.8mm) |
1set |
|
Elastic diaphragm |
8pcs |
|
Air compressor pipe |
1pc |
|
Wrench |
1pc |
|
Calibration plate |
1pc |
|
English operate software |
1set |
|
Cable to connect with computer |
1pc |
