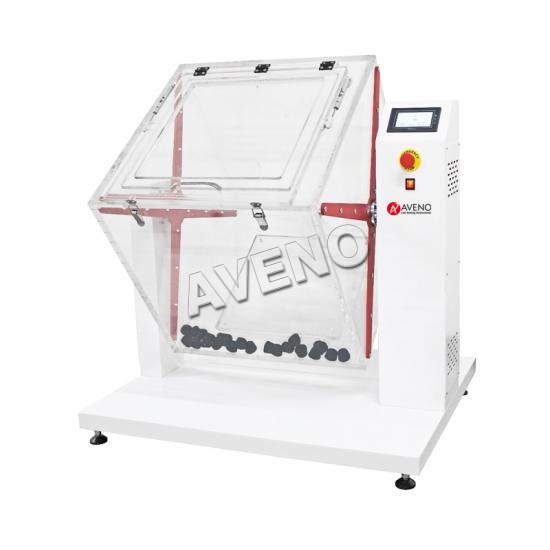

The Fabric Down proof Tester is used to test the performance of down jackets in preventing down from leaking out from the gaps in the fabric.
Brand:
AVENOItem NO.:
AG21-3Payment:
T/T, L/CProduct Origin:
ChinaShipping Port:
Xiamen portLead Time：
3-7daysApplication
The Fabric Down proof Tester is used to test the performance of down jackets in preventing down from leaking out from the gaps in the fabric.
Standards
GB/T 14272-2021 method A
Dimension & Weight
|
Model |
GB/T 14272 Fabric Downproof Tester |
|
Dimension |
100*80*90cm |
|
Weight |
160kg |
Key Specification
|
Model |
GB/T 14272 Fabric Downproof Tester |
|
Chamber inner size |
600mm×600mm×600mm |
|
Rotation speed |
40～45r/min, can be set |
|
Rubber ball |
42pcs, Shore hardness is (55 ± 5) A, weight is (23.75±0.75)g Upper circle*Lower circle*Height: (31 ± 2)*（37±2）*（22±2）mm |
|
Power supply |
AC220V,50/60HZ |
